GPM 40Cr Carbon Steel M1.5 Spur Gear 33T/35T + Motor Gear 20T For TRAXXAS 1/6 XRT 1/5 X-MAXX 6S/8S
$29.86
In Stock
Original part No： NIL Major advantages of upgrading to this part/product： (1) Made of 40Cr Carbon Steel, stronger than the original gear, wear-resistance and better transmission. (2) The upgraded 40Cr Carbon steel Spur Gear 33T M1.5 and large gear shaft, bearing and aluminum 7075 fixed mount bring out three-point support, which is better than the […]
Shipping: Yanwen shipping available
Shipping time: 7-15 business days
Handling time: Ships within 3 business days after receiving cleared payment
Payments:
SKU:
Original part No：
NIL
Major advantages of upgrading to this part/product：
(1) Made of 40Cr Carbon Steel, stronger than the original gear, wear-resistance and better transmission.
(2) The upgraded 40Cr Carbon steel Spur Gear 33T M1.5 and large gear shaft, bearing and aluminum 7075 fixed mount bring out three-point support, which is better than the original two-point support in stability and transmission effect.
(3) Motor tooth diameter: 8mm, D-shaped motor gear hole, module: 1.5mm, number of teeth: 20T,tooth surface width: 8.5mm,Outer diameter: 33mm

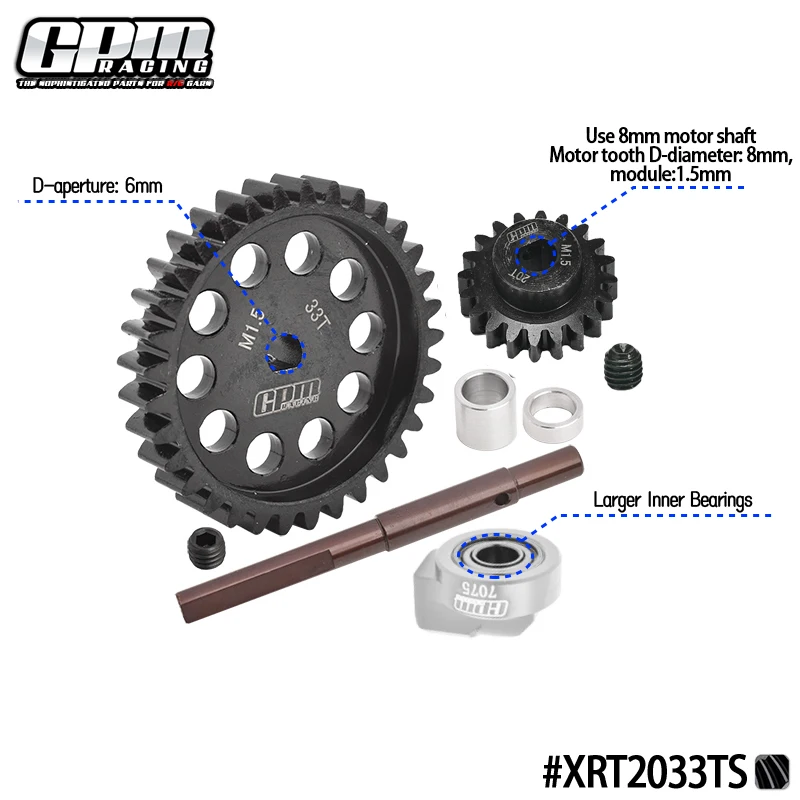

(4) XRT2033TS：Spur Gear 33T diameter: 6mm, D-shaped motor gear hole, module: 1.5mm, number of teeth: 33T,tooth surface width: 14mm,Outer diameter: 52.4mm

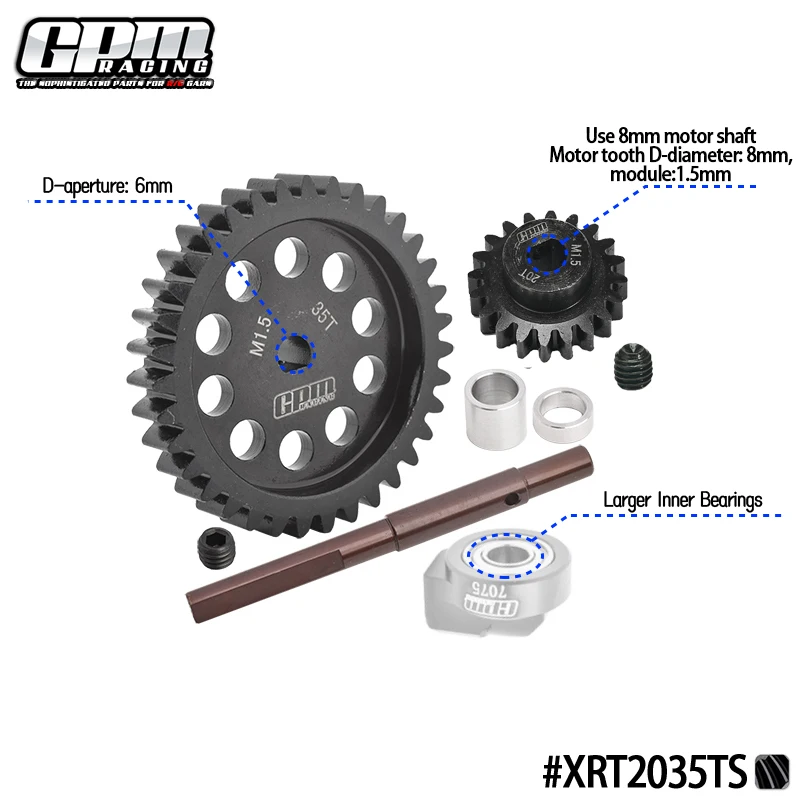

XRT2035TS：Spur Gear 35T diameter: 6mm, D-shaped motor gear hole, module: 1.5mm, number of teeth: 35T,tooth surface width: 14mm,Outer diameter: 55.4mm
Package includes：
XRT2033TS：
Motor Gear 25T-1pcs
5×5 Screw Shaft-1pcs
Spur Gear 33T M1.5-1pcs
Cush Drive Input Shaft-1pcs
Bearing 6x13x5-1pcs
shim 6x8x3.5-1pcs
shim 6x8x7.5-1pcs
Set Screws 5×5-1pcs
Aluminum 7075 Mount-1pcs
XRT2035TS：
Motor Gear 25T-1pcs
5×5 Screw Shaft-1pcs
Spur Gear 35T M1.5-1pcs
Cush Drive Input Shaft-1pcs
Bearing 6x13x5-1pcs
shim 6x8x3.5-1pcs
shim 6x8x7.5-1pcs
Set Screws 5×5-1pcs
Aluminum 7075 Mount-1pcs
Suitable Model：
TRAXXAS 1/6 4WD XRT 8S (78086-4)
TRAXXAS-1/5 X-MAXX 6S MONSTER TRUCK (77076-4)
TRAXXAS-1/5 X-MAXX 8S MONSTER TRUCK (77086-4)
Fast Delivery & No Worries after-sale：We will ship out your order ASAP. Any questions for GPM RACING please check with our highly trained team. We are here to help!
| Color | 20-33T, 20-35T |
|---|
