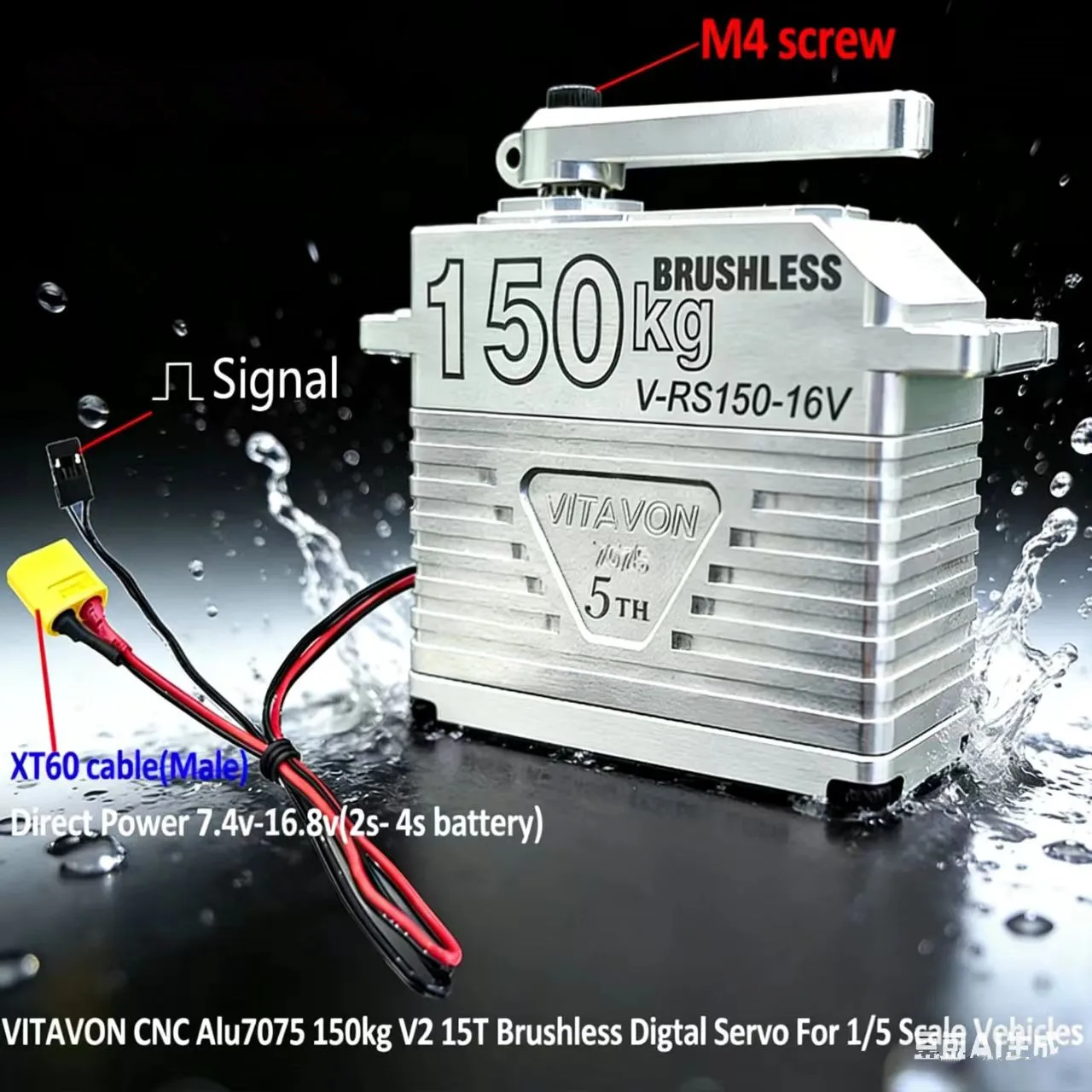

Vitavon 7075 Aluminum Brushless Digtal Servo 150kg 15T 180° 270° 7.4V-16.8V V For RC 1/6 Car Robot Big Torque

Robotic Servo



Brand:VITAVON

Color:Silver

Compared with our G1 servo, the G2 (V2 version) comes with several significant upgrades, as detailed below:





1.Voltage Range Upgrade: The V2 version supports a wider voltage range of 7.4V – 16.8V, replacing the G1’s 7.4V – 12.4V, which enables faster operating speed.

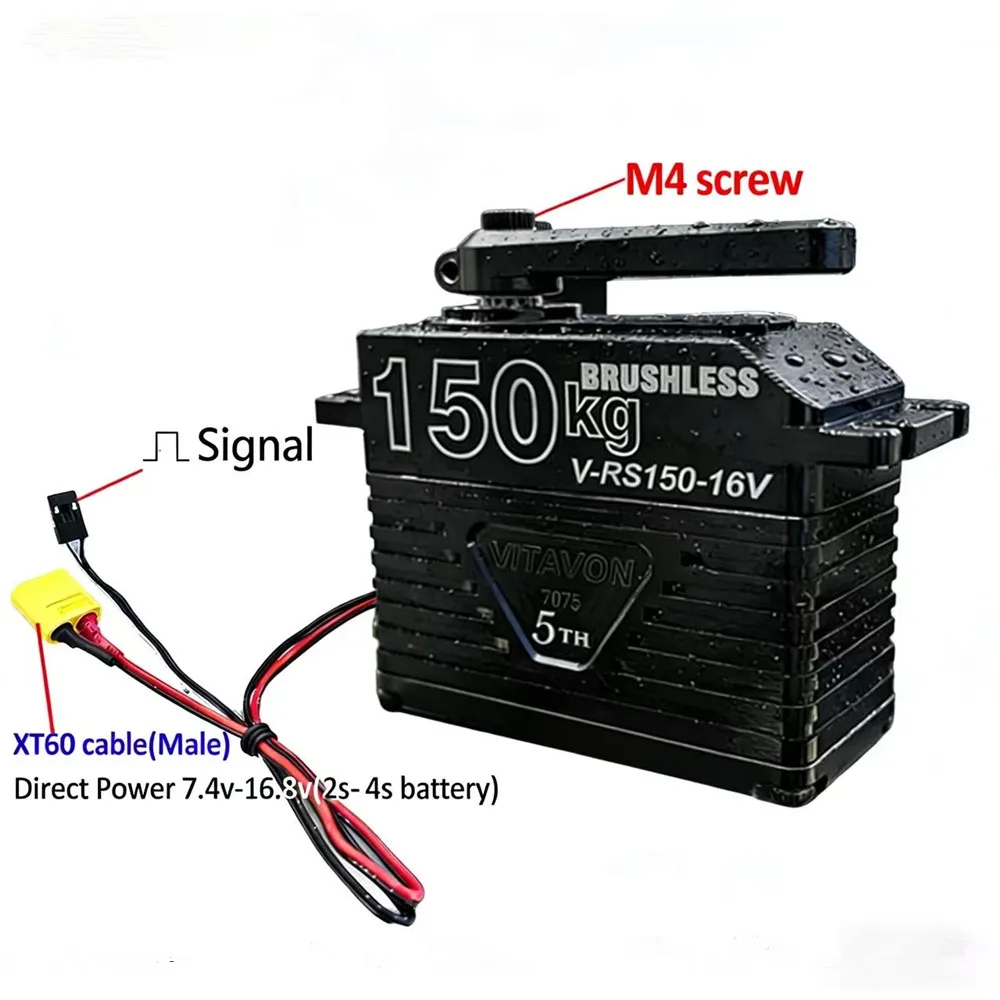

2. Power Supply Requirement: A separate 7.4V-16.8V 2S- 4S battery is required (instead of the 2S-3S battery for G1) to deliver more power. This is particularly important because if the servo draws power directly from the ESC, voltage drops may occur, leading to unstable truck operation.

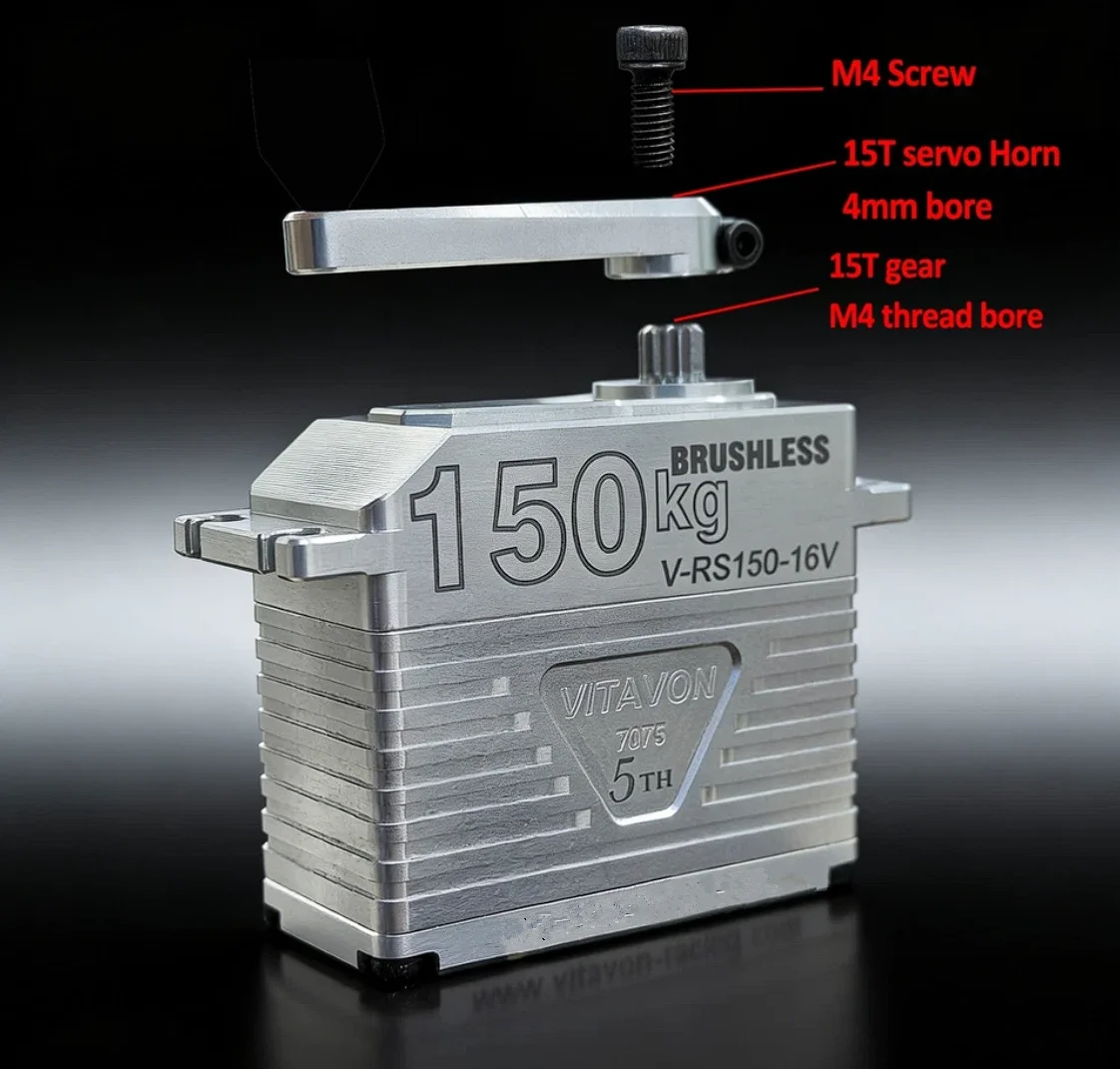

3. Mounting Hole Enhancement: M4 mounting holes are adopted instead of the G1’s M3 holes. This allows the use of M4 screws to secure the servo horn, effectively preventing the screws from loosening easily.



4.Housing Material Upgrade: The servo housing is made of 7075 aluminum alloy, replacing the 6061 aluminum alloy used in the G1 servo for improved durability and strength.

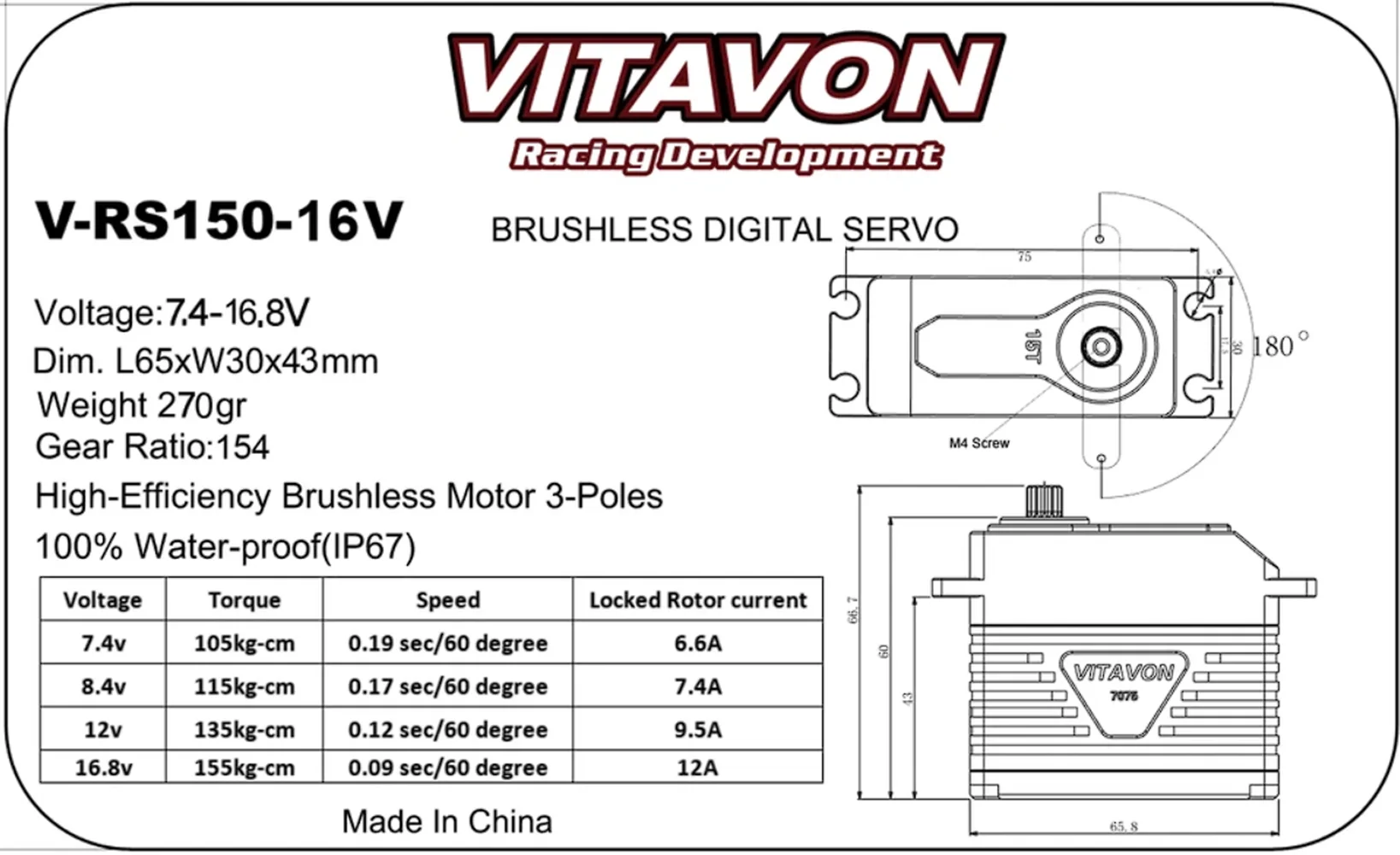

Specifications:

Scale: 1:5

Voltage Range:7.4V – 16.8V

Motor Type: Brushless

Output Shaft: 15 Tooth

Gears: Stainless steel

Gear Ratio:154

Weight: 270g

Dimensions: 2.56×1.18×1.69in (65x30x43mm)

Height (Base to Mount): 43mm

Voltage Torque Speed Locked rotor current

7.4v 105 kg-cm 0.19 sec/60 degree 6.6A

8.4V 115 kg-cm 0.17sec/60degree 7.4A

12V 135kg-cm 0.12sec/60degree 9.5A

16.8V 155kg-cm 0.09sec/60degree 12A



Includes:

Brushless Servo+15T servo horn

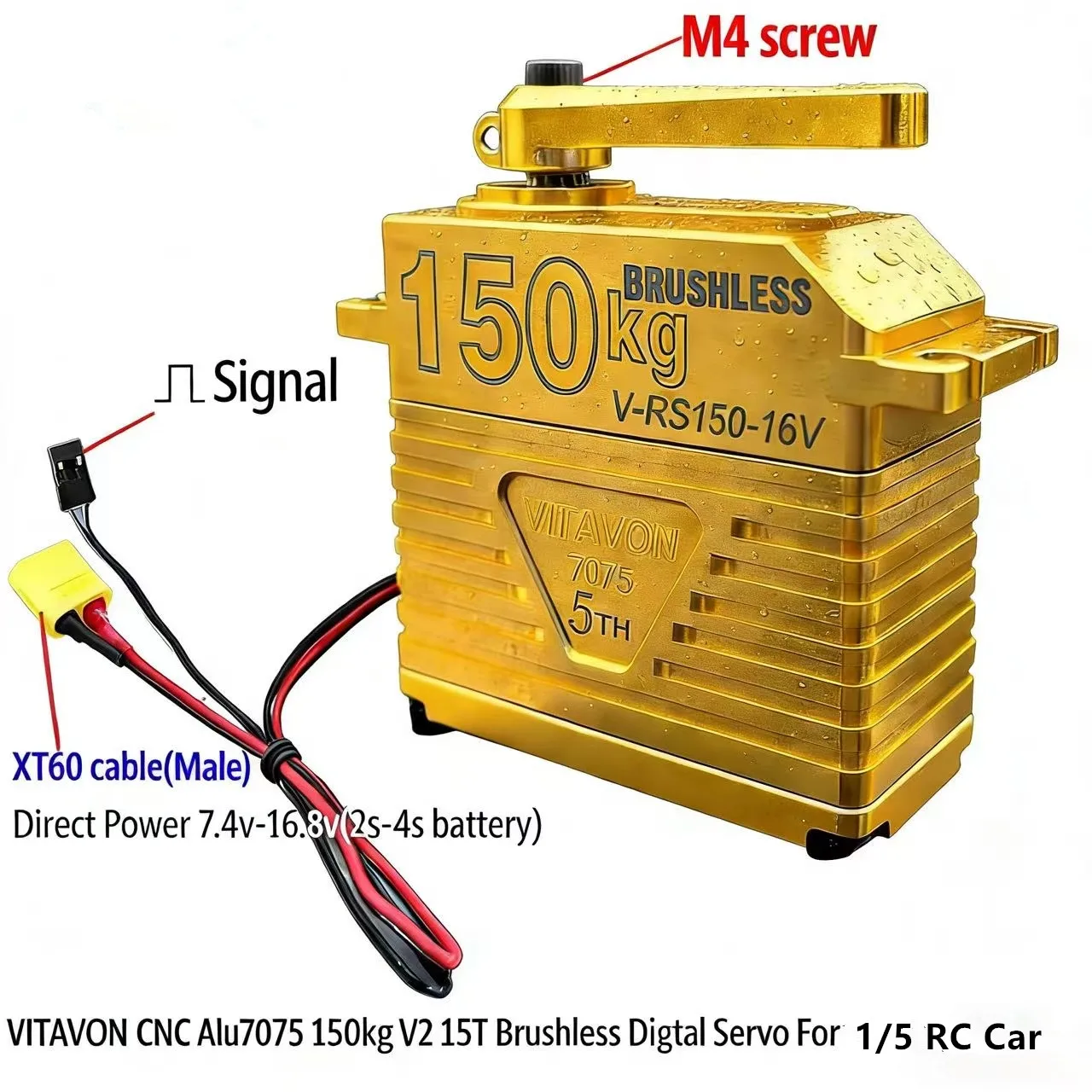

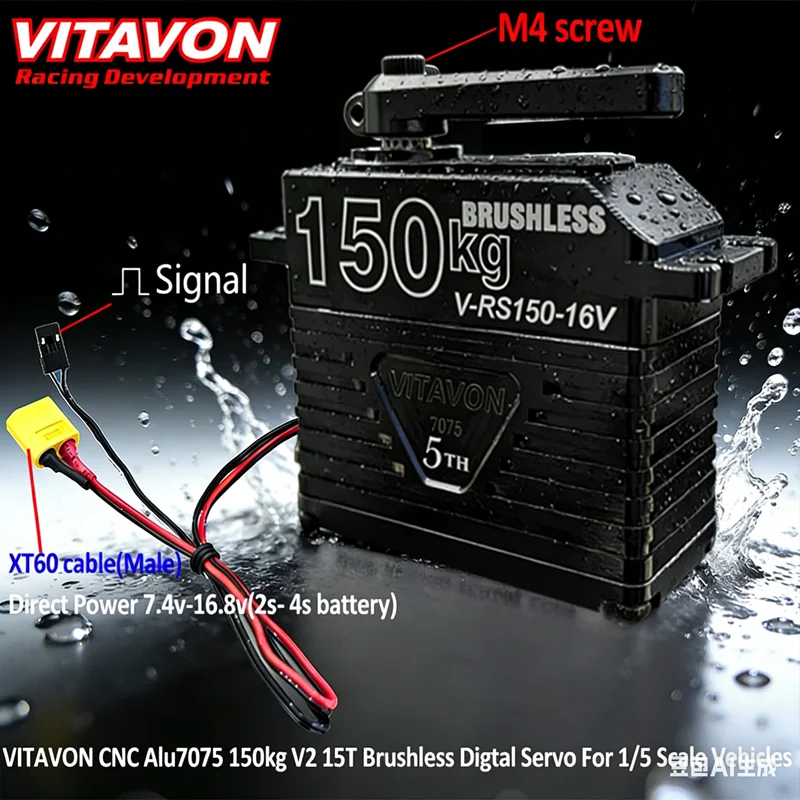

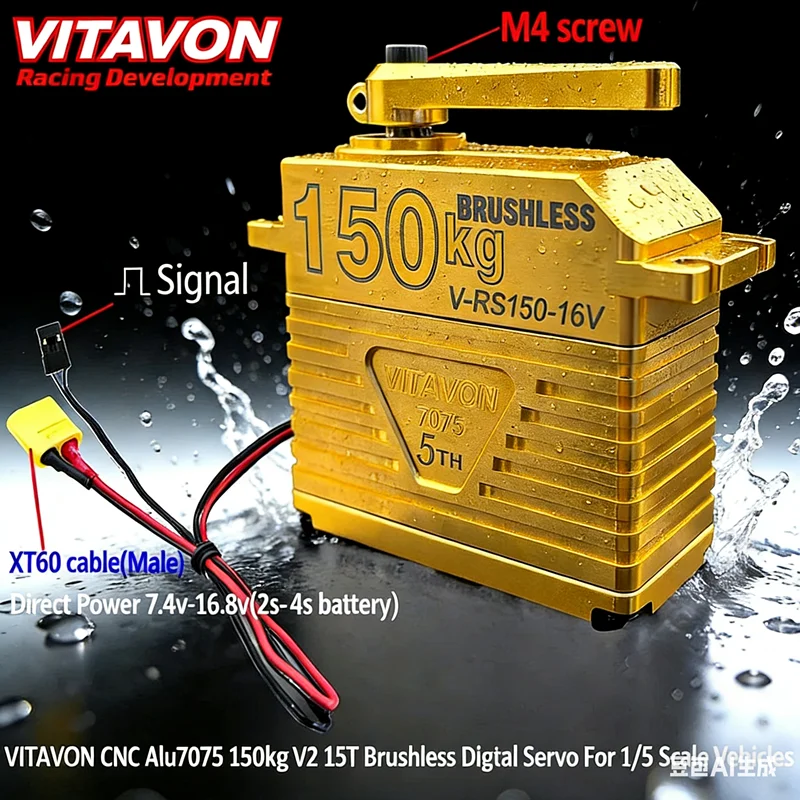

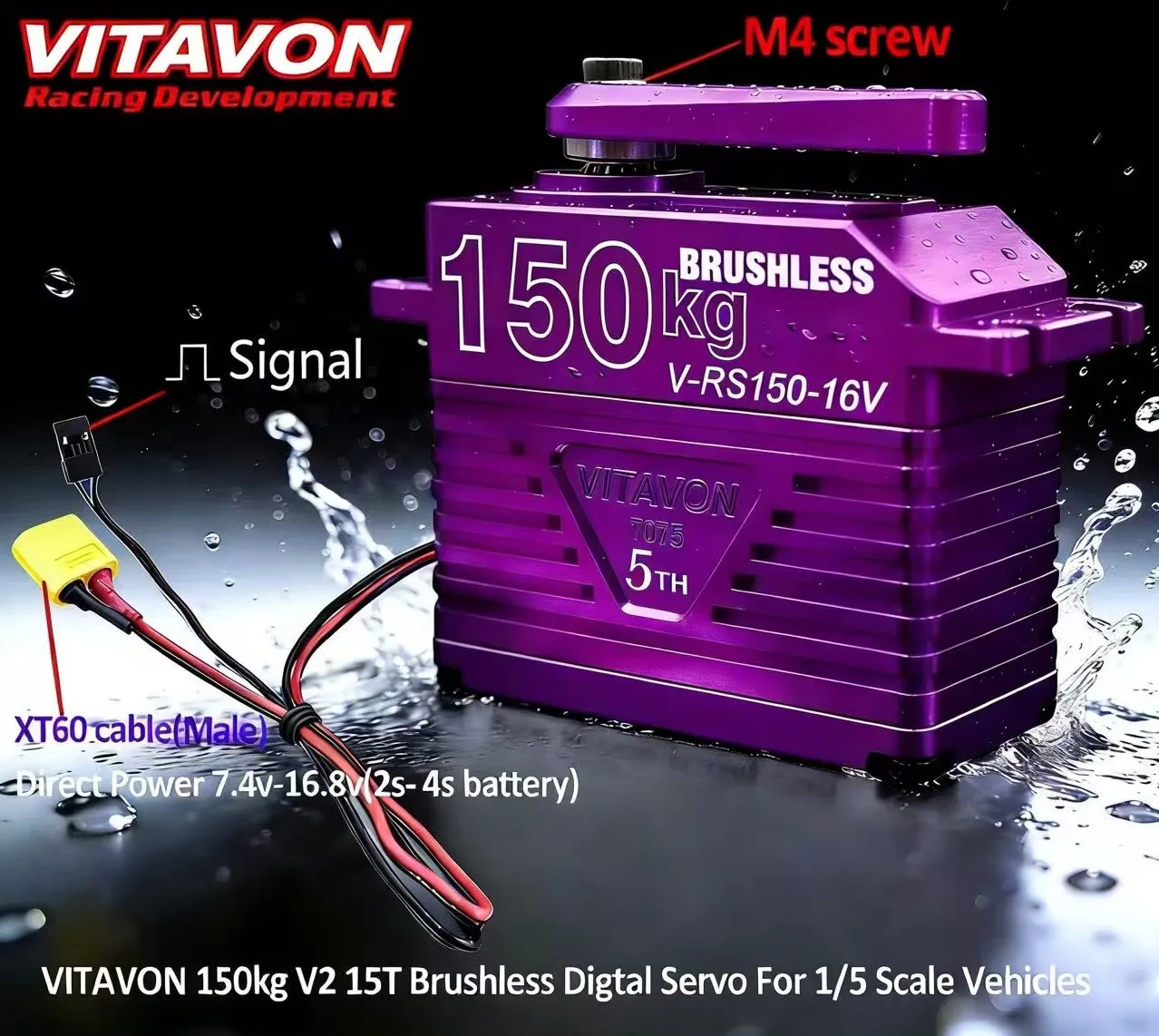

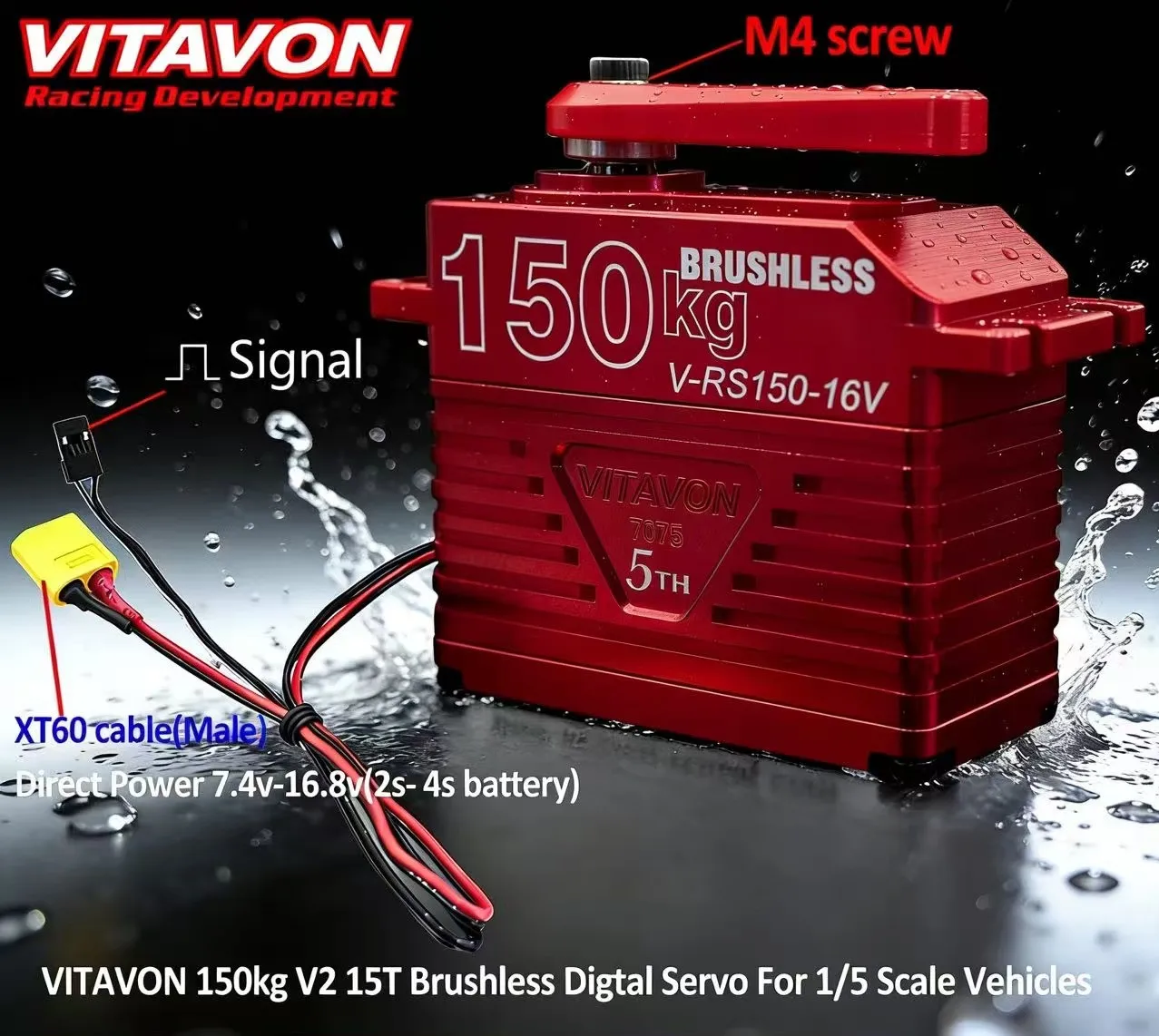

Color	Gold 180 degrees, Black180 degrees, Silver180 degrees, Gold270 degrees, Black270 degrees, Silver270 degrees, Blue 180 degrees, Blue 270 degrees, Purple 270 degrees, Purple 180 degrees, Red 180 degrees, Red 270 degrees
