Spur diameter: 6mm, Motor tooth diameter: 8mm, D-shaped motor gear hole, module: 1.5mm For 1/5 X-MAXX 8S,1/6 4WD XRT 8S-78086-
$29.79
In Stock
Original part No： NIL Major advantages of upgrading to this part/product： (1) Made of 40Cr Carbon Steel, stronger than the original gear, wear-resistance and better transmission. (2) The upgraded 40Cr Carbon steel Spur Gear 33T M1.5 and large gear shaft, bearing and aluminum 7075 fixed mount bring out three-point support, which is better than the […]
Shipping: Yanwen shipping available
Shipping time: 7-15 business days
Handling time: Ships within 3 business days after receiving cleared payment
Payments:
SKU:
Original part No：
NIL
Original part No：
NIL
(1) Made of 40Cr Carbon Steel, stronger than the original gear, wear-resistance and better transmission.
(2) The upgraded 40Cr Carbon steel Spur Gear 33T M1.5 and large gear shaft, bearing and aluminum 7075 fixed mount bring out three-point support, which is better than the original two-point support in stability and transmission effect.
(3) Motor tooth diameter: 8mm, D-shaped motor gear hole, module: 1.5mm, number of teeth: 25T,tooth surface width: 9mm,Outer diameter: 40mm
(4) Spur Gear 33T diameter: 6mm, D-shaped motor gear hole, module: 1.5mm, number of teeth: 33T,tooth surface width: 14mm,Outer diameter: 52.4mm

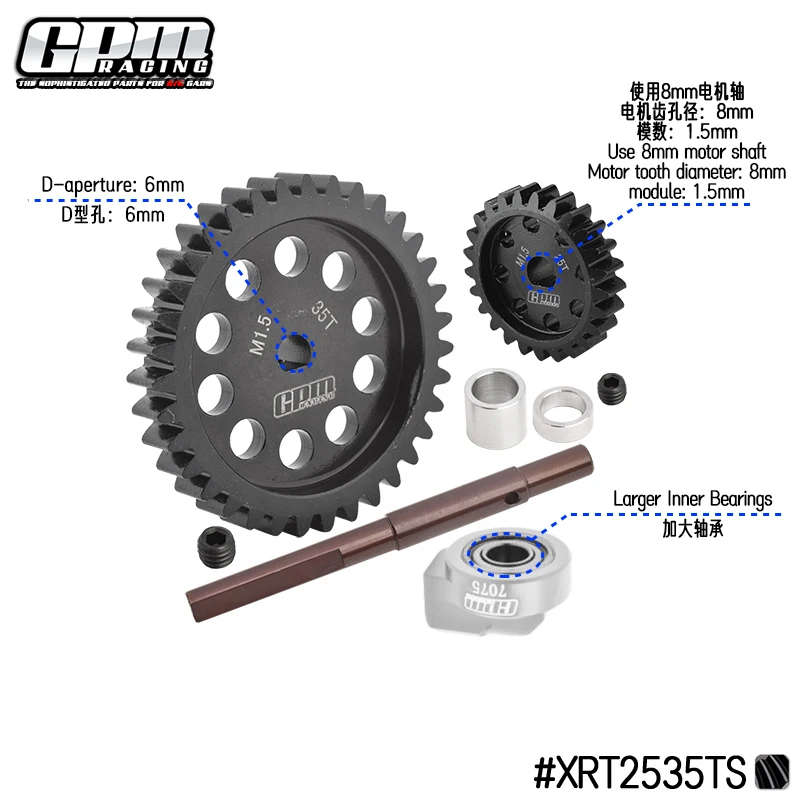

(1) Made of 40Cr Carbon Steel, stronger than the original gear, wear-resistance and better transmission.
(2) The upgraded 40Cr Carbon steel Spur Gear 35T M1.5 and large gear shaft, bearing and aluminum 7075 fixed mount bring out three-point support, which is better than the original two-point support in stability and transmission effect.
(3) Motor tooth diameter: 8mm, D-shaped motor gear hole, module: 1.5mm, number of teeth: 25T,tooth surface width: 9mm,Outer diameter: 40mm
(4) Spur Gear 35T diameter: 6mm, D-shaped motor gear hole, module: 1.5mm, number of teeth: 35T,tooth surface width: 14mm,Outer diameter: 55.4mm
Package includes：
XRT027TS
Motor Gear 27T-1pcs
5×5 Screw Shaft-1pcs
XRT033TS
Spur Gear 33T M1.5-1pcs
Cush Drive Input Shaft-1pcs
Bearing 6x13x5-1pcs
shim 6x8x3.5-1pcs
shim 6x8x7.5-1pcs
Set Screws 5×5-1pcs
Aluminum 7075 Mount-1pcs

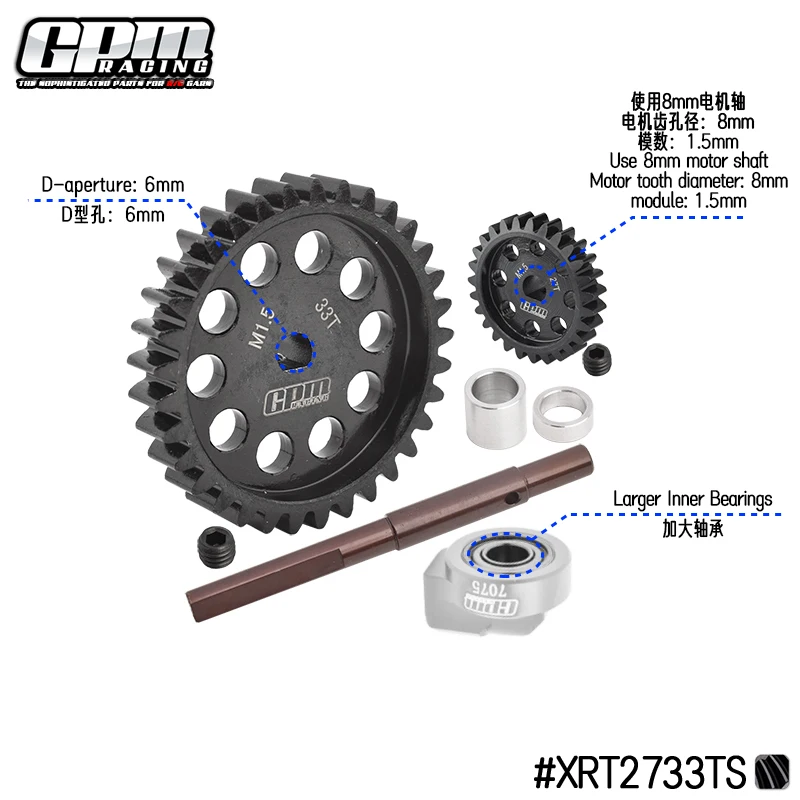

(1) Made of 40Cr Carbon Steel, stronger than the original gear, wear-resistance and better transmission.
(2) The upgraded 40Cr Carbon steel Spur Gear 33T M1.5 and large gear shaft, bearing and aluminum 7075 fixed mount bring out three-point support, which is better than the original two-point support in stability and transmission effect.
(3) Motor tooth diameter: 8mm, D-shaped motor gear hole, module: 1.5mm, number of teeth: 27T,tooth surface width: 9mm,Outer diameter: 43mm
(4) Spur Gear 33T diameter: 6mm, D-shaped motor gear hole, module: 1.5mm, number of teeth: 33T,tooth surface width: 14mm,Outer diameter: 52.4mm

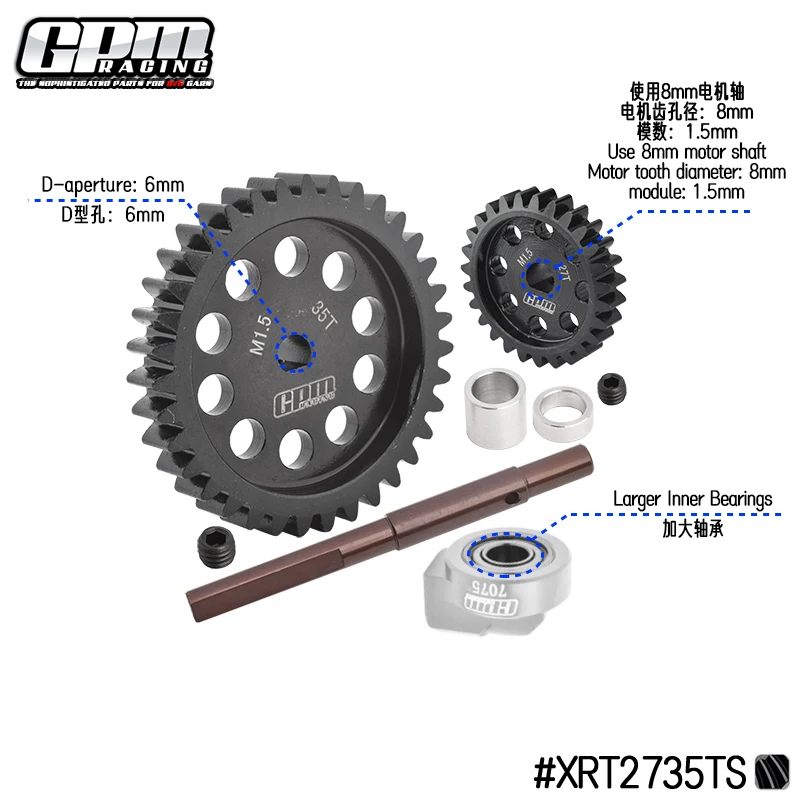

(1) Made of 40Cr Carbon Steel, stronger than the original gear, wear-resistance and better transmission.
(2) The upgraded 40Cr Carbon steel Spur Gear 35T M1.5 and large gear shaft, bearing and aluminum 7075 fixed mount bring out three-point support, which is better than the original two-point support in stability and transmission effect.
(3) Motor tooth diameter: 8mm, D-shaped motor gear hole, module: 1.5mm, number of teeth: 27T,tooth surface width: 9mm,Outer diameter: 43mm
(4) Spur Gear 35T diameter: 6mm, D-shaped motor gear hole, module: 1.5mm, number of teeth: 35T,tooth surface width: 14mm,Outer diameter: 55.4mm
Package includes：
SSB018T
Motor Gear 18T-41pcs
5×5 Screw Shaft-1pcs
XRT033TS
Spur Gear 33T M1.5-1pcs
Cush Drive Input Shaft-1pcs
Bearing 6x13x5-1pcs
shim 6x8x3.5-1pcs
shim 6x8x7.5-1pcs
Set Screws 5×5-1pcs
Aluminum 7075 Mount-1pcs

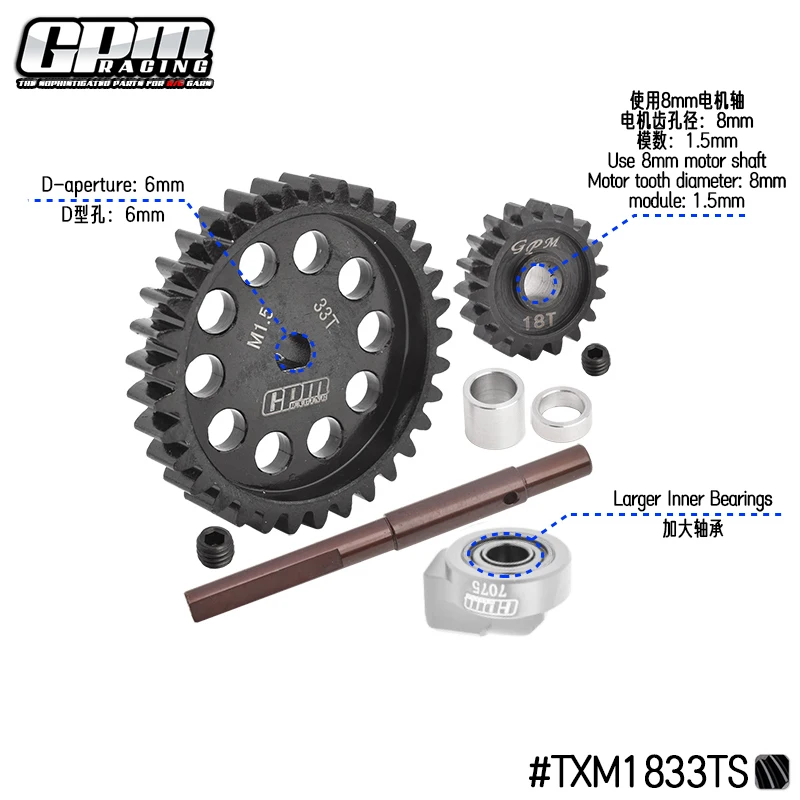

(1) Made of 40Cr Carbon Steel, stronger than the original gear, wear-resistance and better transmission.
(2) The upgraded 40Cr Carbon steel Spur Gear 33T M1.5 and large gear shaft, bearing and aluminum 7075 fixed mount bring out three-point support, which is better than the original two-point support in stability and transmission effect.
(3) Motor tooth diameter: 8mm, module: 1.5mm, number of teeth: 18T
(4) Spur Gear 33T diameter: 6mm, D-shaped motor gear hole, module: 1.5mm, number of teeth: 33T,tooth surface width: 14mm,Outer diameter: 52.4mm
Package includes：
SSB018T
Motor Gear 18T-41pcs
5×5 Screw Shaft-1pcs
XRT035TS
Spur Gear 35T M1.5-1pcs
Cush Drive Input Shaft-1pcs
Bearing 6x13x5-1pcs
shim 6x8x3.5-1pcs
shim 6x8x7.5-1pcs
Set Screws 5×5-1pcs
Aluminum 7075 Mount-1pcs

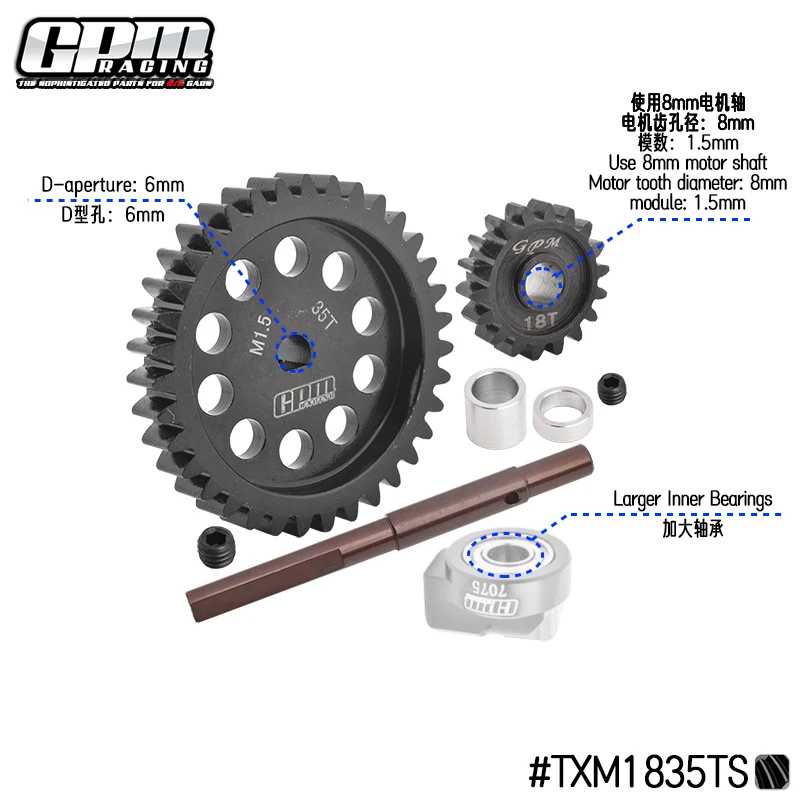

(1) Made of 40Cr Carbon Steel, stronger than the original gear, wear-resistance and better transmission.
(2) The upgraded 40Cr Carbon steel Spur Gear 35T M1.5 and large gear shaft, bearing and aluminum 7075 fixed mount bring out three-point support, which is better than the original two-point support in stability and transmission effect.
(3) Motor tooth diameter: 8mm, module: 1.5mm, number of teeth: 18T
(4) Spur Gear 35T diameter: 6mm, D-shaped motor gear hole, module: 1.5mm, number of teeth: 35T,tooth surface width: 14mm,Outer diameter: 55.4mm
Package includes：
SSB019T
Motor Gear 19T-41pcs
5×5 Screw Shaft-1pcs
XRT033TS
Spur Gear 33T M1.5-1pcs
Cush Drive Input Shaft-1pcs
Bearing 6x13x5-1pcs
shim 6x8x3.5-1pcs
shim 6x8x7.5-1pcs
Set Screws 5×5-1pcs
Aluminum 7075 Mount-1pcs
(1) Made of 40Cr Carbon Steel, stronger than the original gear, wear-resistance and better transmission.
(2) The upgraded 40Cr Carbon steel Spur Gear 33T M1.5 and large gear shaft, bearing and aluminum 7075 fixed mount bring out three-point support, which is better than the original two-point support in stability and transmission effect.
(3) Motor tooth diameter: 8mm, module: 1.5mm, number of teeth: 19T
(4) Spur Gear 33T diameter: 6mm, D-shaped motor gear hole, module: 1.5mm, number of teeth: 33T,tooth surface width: 14mm,Outer diameter: 52.4mm
Package includes：
SSB019T
Motor Gear 19T-41pcs
5×5 Screw Shaft-1pcs
XRT035TS
Spur Gear 35T M1.5-1pcs
Cush Drive Input Shaft-1pcs
Bearing 6x13x5-1pcs
shim 6x8x3.5-1pcs
shim 6x8x7.5-1pcs
Set Screws 5×5-1pcs
Aluminum 7075 Mount-1pcs
(1) Made of 40Cr Carbon Steel, stronger than the original gear, wear-resistance and better transmission.
(2) The upgraded 40Cr Carbon steel Spur Gear 35T M1.5 and large gear shaft, bearing and aluminum 7075 fixed mount bring out three-point support, which is better than the original two-point support in stability and transmission effect.
(3) Motor tooth diameter: 8mm, module: 1.5mm, number of teeth: 19T
(4) Spur Gear 35T diameter: 6mm, D-shaped motor gear hole, module: 1.5mm, number of teeth: 35T,tooth surface width: 14mm,Outer diameter: 55.4mm

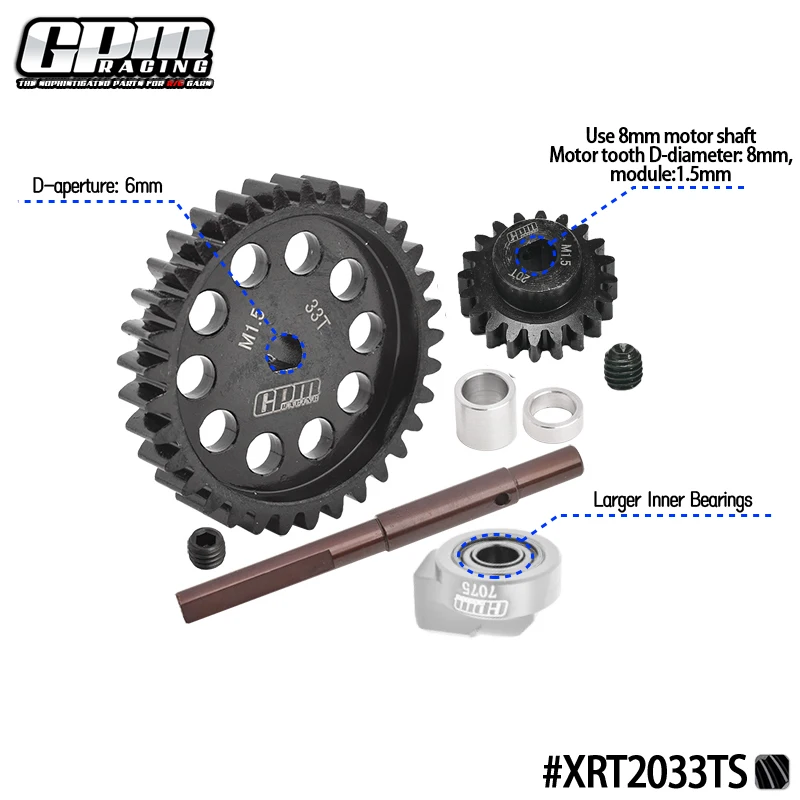

| Color | BLACK-(20T-33T), BLACK-(20T-35T), BLACK-(25T-35T), BLACK-(25T-33T), BLACK-(27T-33T), BLACK-(18T-33T), BLACK-(27T-35T), BLACK-(18T-35T), BLACK-(19T-33T), BLACK-(19T-35T) |
|---|
