GPM 40Cr Carbon Steel M1.5 Spur Gear 33T/35T + Motor Gear 20T For TRAXXAS 1/6 XRT 1/5 x-maxx
$30.02
In Stock
Major advantages of upgrading to this part/product： XRT2033TS: (1) Made of 40Cr Carbon Steel, stronger than the original gear, wear-resistance and better transmission. (2) The upgraded 40Cr Carbon steel Spur Gear 33T M1.5 and large gear shaft, bearing and aluminum 7075 fixed mount bring out three-point support, which is better than the original two-point support […]
Shipping: Yanwen shipping available
Shipping time: 7-15 business days
Handling time: Ships within 3 business days after receiving cleared payment
Payments:
SKU:

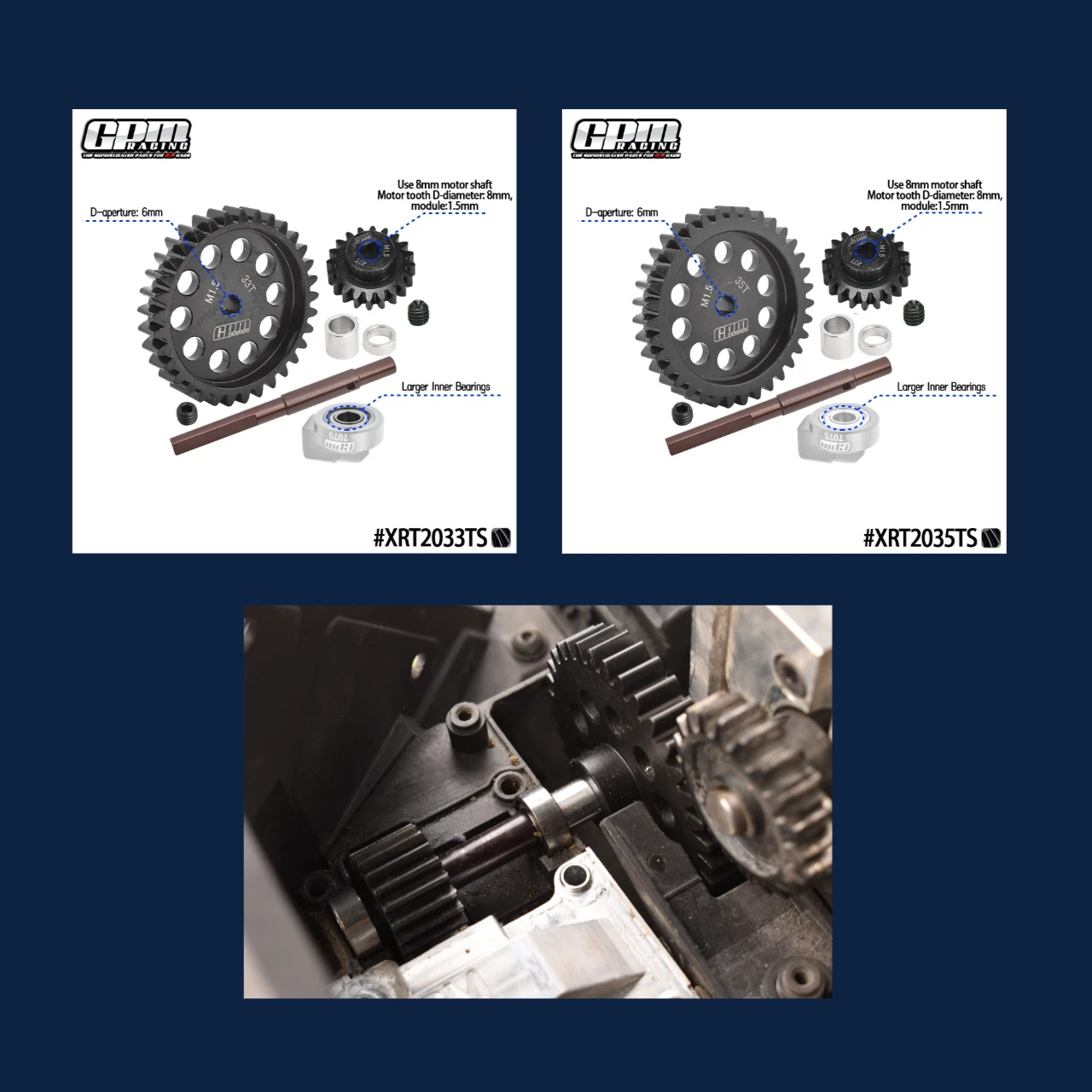

Major advantages of upgrading to this part/product：
XRT2033TS:
(1) Made of 40Cr Carbon Steel, stronger than the original gear, wear-resistance and better transmission.

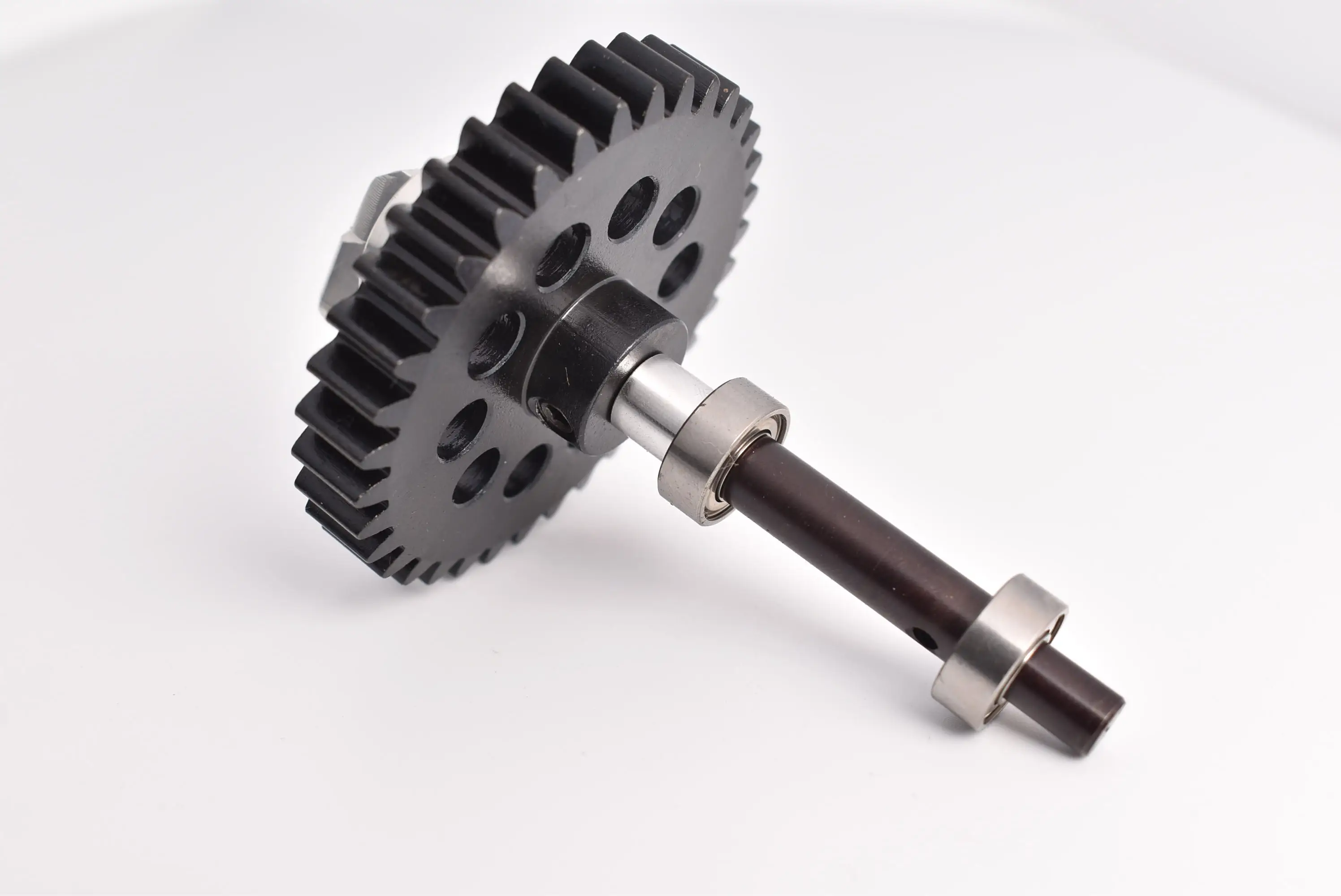

(2) The upgraded 40Cr Carbon steel Spur Gear 33T M1.5 and large gear shaft, bearing and aluminum 7075 fixed mount bring out three-point support, which is better than the original two-point support in stability and transmission effect.
(3) Motor tooth diameter: 8mm, D-shaped motor gear hole, module: 1.5mm, number of teeth: 20T,tooth surface width: 8.5mm,Outer diameter: 33mm
(4) Spur Gear 33T diameter: 6mm, D-shaped motor gear hole, module: 1.5mm, number of teeth: 33T,tooth surface width: 14mm,Outer diameter: 52.4mm
XRT2035TS:
(1) Made of 40Cr Carbon Steel, stronger than the original gear, wear-resistance and better transmission.

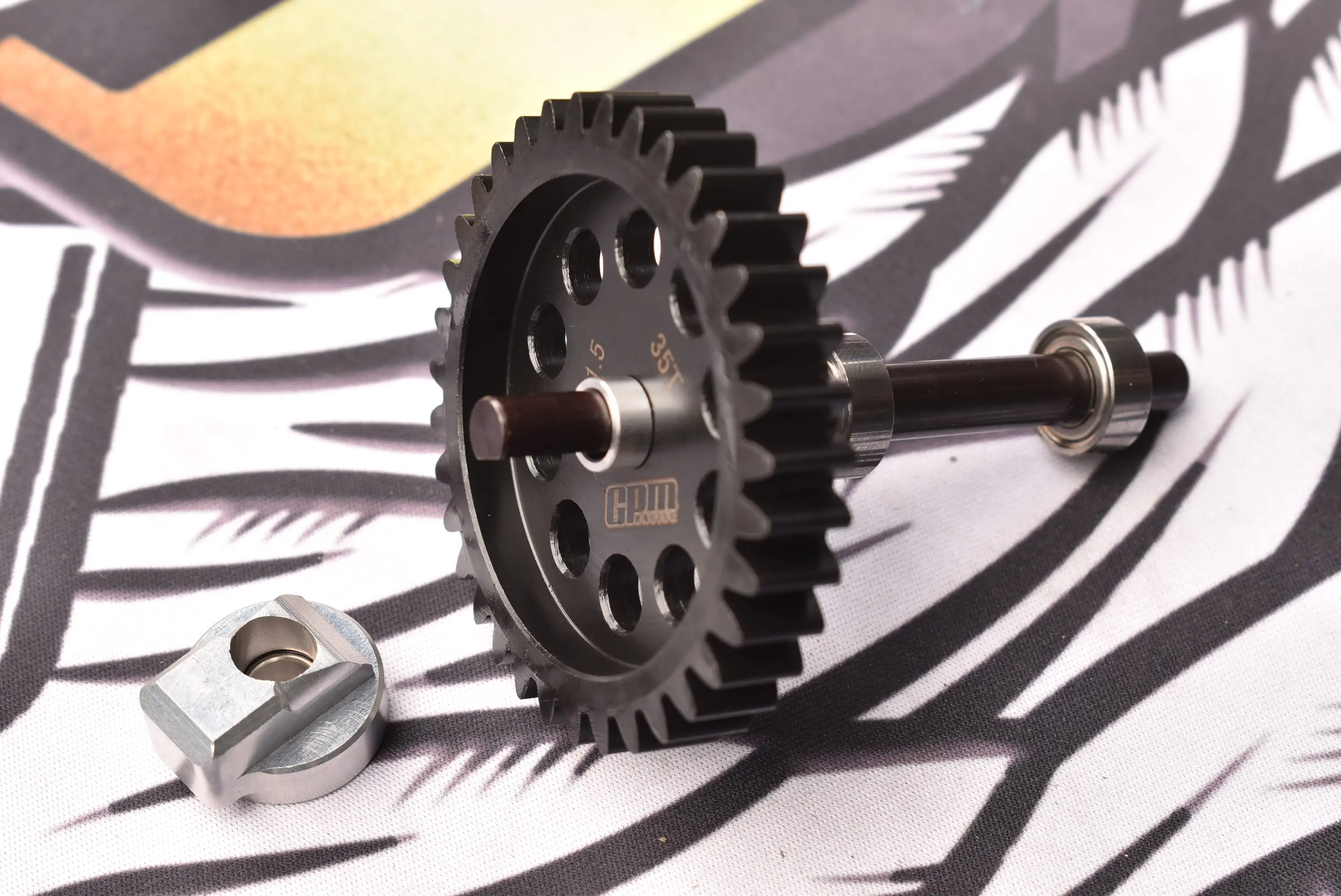

(2) The upgraded 40Cr Carbon steel Spur Gear 35T M1.5 and large gear shaft, bearing and aluminum 7075 fixed mount bring out three-point support, which is better than the original two-point support in stability and transmission effect.
(3) Motor tooth diameter: 8mm, D-shaped motor gear hole, module: 1.5mm, number of teeth: 20T,tooth surface width: 8.5mm,Outer diameter: 33mm
(4) Spur Gear 35T diameter: 6mm, D-shaped motor gear hole, module: 1.5mm, number of teeth: 35T,tooth surface width: 14mm,Outer diameter: 55.4mm
Package includes：
XRT2033TS:
SSB020T:
Motor Gear 20T-1pcs
5×5 Screw Shaft-1pcs
XRT033TS:
Spur Gear 33T M1.5-1pcs
Cush Drive Input Shaft-1pcs
Bearing 6x13x5-1pcs
shim 6x8x3.5-1pcs
shim 6x8x7.5-1pcs
Set Screws 5×5-1pcs
Aluminum 7075 Mount-1pcs
XRT2035TS:
SSB020T:
Motor Gear 20T-1pcs
5×5 Screw Shaft-1pcs
XRT035TS:
Spur Gear 35T M1.5-1pcs
Cush Drive Input Shaft-1pcs
Bearing 6x13x5-1pcs
shim 6x8x3.5-1pcs
shim 6x8x7.5-1pcs
Set Screws 5×5-1pcs
Aluminum 7075 Mount-1pcs
Suitable Model：
TRAXXAS 1/6 4WD XRT 8S（78086-4）
TRAXXAS 1/5 X-Maxx 6S Monster Truck（77076-4）
TRAXXAS 1/5 X-Maxx 8S Monster Truck（77086-4）
Fast Delivery & No Worries after-sale：We will ship out your order ASAP. Any questions for GPM RACING please check with our highly trained team. We are here to help!
| Color | 20-33T, 20-35T |
|---|
